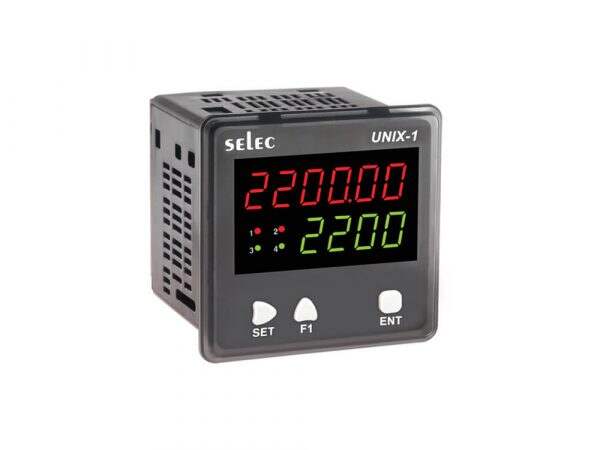

Selec ,UNIX-1-230V
₹3,458.00
UNIX-1-230V model features a 6 Red + 4 Green Digits LED Display along with 2 Red + 2 Green LED indicators. Sized at 72 x 72 mm, it accommodates 3 digital inputs along with 1 Fast Input Channel. This device supports 3* analog input channels including 1 TC/RTD, 1 (0-20)mA, and 1* (0-10)VDC. It is equipped with 2 Transistor Outputs and 2 Relay Outputs, with output ratings of 5A @230VAC / 24VDC (Relay) and 100mA @24V DC (Transistor). Without analog outputs or the RTC with Time Switch Function, it has a code memory of 240KB and communicates through RS485 Based MODBUS RTU Protocol. Designed for panel mounting, it operates on a supply voltage of 100 to 270 VAC / 18 to 30 VDC, with a maximum counting frequency of 5KHz for specific inputs.
- Description
- Additional information
Description
| Display Type | 6 Red + 4 Green Digits LED Display , 2 Red + 2 Green LED’s |
| Size | 72 x 72 mm |
| Digital Inputs | 3 + 1* (PNP Type) Including 1 Fast Input Channel |
| Analog Inputs | 3* Channels (1 TC / RTD, 1 (0-20)mA, 1* (0-10)VDC ) |
| Digital Outputs | 2 Transistor Outputs, 2 Relay Outputs |
| Output Rating | 5A @230VAC / 24VDC(Relay), 100mA @24V DC (Transistor) |
| Analog Outputs | NA |
| RTC With Time Switch Function | NO |
| Code Memory | 240KB |
| Communication Interface | RS485 Based MODBUS RTU Protocol |
| Expansion | NO |
| Supply Voltage | 100 to 270 VAC / 18 to 30 VDC |
| Mounting Type | Panel Mount |
| FI / Maximum Counting Frequency | FC0 (I0 & I1) – 5KHz, Normal digital input: 30Hz |
Additional information
| Weight | 1 kg |
|---|
