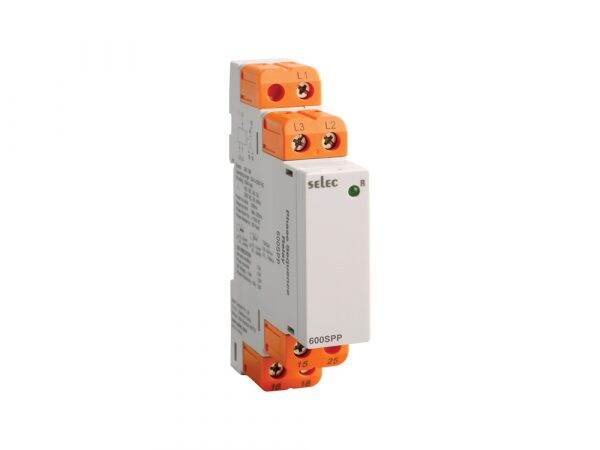

Selec SPPA2M2,Phase Faliure Relay
₹788.00
SPPA2M2 is an advanced monitoring device that ensures the reliable operation of electrical systems by monitoring key parameters. Designed for 3-phase, 3-wire connections, this unit effectively guards against Phase Loss, Phase Asymmetry, Over Voltage, and Under Voltage conditions.
Operating within an impressive range of 280 to 520V AC (L-L), the SPPA2M2 is versatile and suitable for various applications. Its functional specifications include a Phase Imbalance tolerance of 30V, with a hysteresis of 6V to maintain stability. The Voltage Accuracy, at ±1% of full scale, guarantees precise measurements, while the Time Accuracy of ±5% ±100ms ensures reliable response.
The unit is engineered with safety in mind, featuring a power-on delay of 3 seconds for stable operation during startup. With well-defined trip settings, including Phase Asymmetry, Over Voltage, and Under Voltage, the SPPA2M2 responds promptly to anomalies. The trip and recovery time delays for various conditions provide swift protection (<120ms for phase loss and phase asymmetry, <200ms for over voltage and under voltage).
Equipped with two DPDT (2C/O) relays, each with a contact rating of 5A@250VAC resistive, the SPPA2M2 offers a reliable safeguarding mechanism. Its compact size of 35 x 90 mm and DIN rail mounting make it easy to integrate into existing setups. This device stands as a dependable guardian of electrical systems, providing security and peace of mind in critical applications.
- Description
- Additional information
Description
Measuring Parameter | Monitors : Phase Loss, Phase Asymmetry, Over Voltage & Under Voltage |
Electrical Connection | 3Ø-3W |
Operating Voltage | 280 to 520V AC(L-L) |
Functional Specification | Phase Imbalance : 30V (fixed), Hysteresis : 6V, Voltage Accuracy : ±1% of full scale, Time Accuracy : ±5% ±100ms, Power on delay : 3sec (fixed) |
Trip setting | Phase Asymmetry : 30V (fixed), Over Voltage trip : 10% of nominal voltage, Under Voltage trip : 15 % of nominal voltage, Trip & Recovery time delay : <120ms for phase loss, phase asymmetry <200ms for over voltage, under voltage |
Reset Condition | After removal of fault condition reset automatically after hysteresis of 6V |
Output Contact | No. of Relays : 2 Output Contact : DPDT(2C/O) Contact Rating : 5A@250VAC resistive |
Relay status | Healthy :- COM-NO Trip :- COM-NC |
Size | 35 X 90 mm |
Mounting Type | DIN rail Mount |
Additional information
Weight | 1 kg |
---|
