Selec PPRWD-4M-1
₹1,183.00

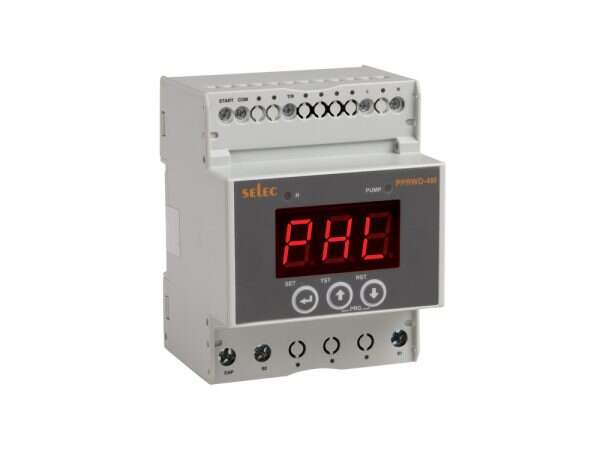

PPRWD-4M-1 is an advanced monitoring solution meticulously designed to safeguard electrical systems while offering automatic start and stop functionality based on water level detection using a float switch. This versatile device accurately monitors an array of parameters, including Dry/Under Current, Over Current, Locked Current, Over Voltage, Under Voltage, Phase Failure, and Overload.
With a 1-Phase-2-Wire electrical connection, it provides options for both manual and auto reset modes, accompanied by clear LED indicators for power status and trip indications. The 3-digit, 7-segment LED display ensures easy readability of measurements. The voltage measuring range spans from 180V to 300V AC (Line-to-Neutral), with a maximum power consumption of 40VA.
The device also caters to motor-rated current measurements ranging from 1A to 30A, making it adaptable to various setups. The Control Output features a single Normally Open (NO) relay with a relay rating of 32A@277V AC. Accuracy is maintained with ±5% for rated current and ±1% for voltage accuracy.
Its functional specifications encompass NEMA class-based overload protection, customizable overcurrent ranges, undercurrent monitoring, and detection of locked or stalled current. Voltage range limits are set between 180V and 300V AC.
Customizable time settings include a 1-second fixed power-on delay, adjustable trip time delays for both current and voltage parameters, and a recovery time for those same parameters. The auto restart feature attempts up to 3 times within a preset timeframe.
Designed for DIN Rail mounting, the device measures 66.50 x 70 x 90mm (Height x Width x Length), allowing convenient integration into various setups. The PPRWD-4M-1’s comprehensive functionality and precise accuracy make it an optimal choice for safeguarding electrical systems while providing water level-based automation.
- Description
- Additional information
Description
| Measuring Parameter | Monitors Dry/Under Current, Over Current, Locked Current, Over Voltage, Under Voltage, Phase Failure and Overload with Automatic start & stop as per water level detection (Float switch) |
| Electrical Connection | 1Ø – 2 |
| Test / Reset | Manual / Auto reset |
| LED Indication | Power ON, Trip indication |
| Display | 3 Digits, 7 Segment LED display |
| Voltage Measuring Range | 180 to 300V AC (L – N) |
| Power Consumption | 40VA (max) |
| Power Motor Rated Current Measuring | 1A to 30A |
| Output Contact | Control Output 1 NO Relay, Relay Rating 32A@277V AC |
| Accuracy | Current Accuracy ±5% of rated current, Voltage Accuracy ±1% of 300V, Time Accuracy ±5% ±100msec |
| Functional Specifications | Over load NEMA class 5, 10, 15, 20, 30, Over current ranges [Ir (Rated current) + 1 to 32A], Under current [0.2A to Ir (Rated current) – 1], Locked current / Stall current [Ir (Rated current) + 1 to 32A], Over voltage 180V – 300V AC ( L – N ), Under voltage 180V – 300V AC ( L – N ) |
| Time Setting | Power ON delay 1sec (Fixed), Trip time delay (Current & Voltage parameters) 0 – 999sec, Recovery time (Current & Voltage parameters) 1 – 999sec, Reset attempts 3 (fixed), Reset Attempt Time Frame 1 – 999 mins |
| Auto Restart Attempts | 3 (Fixed) |
| Mounting | DIN Rail Mount |
| Size | 66.50 x 70 x 90 (H x W x L) |
Additional information
| Weight | 1 kg |
|---|
