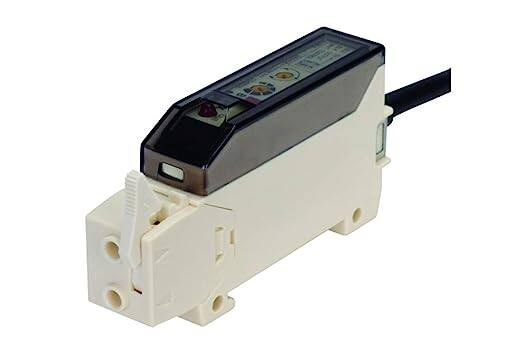

Optic Fibre Sensor Autonics BF3RX-P Fibre Optic Sensor

2,273.00

BF3RX-P Optic Fibre Sensor, a cutting-edge solution designed to meet your sensing needs. Here are the key specifications that define its capabilities:

Light Source: Equipped with a high-performing Red LED (660nm) for optimal sensing accuracy. Response Time: Boasting a remarkable maximum response time of just 1ms, ensuring swift and precise detection. Power Supply: Operates seamlessly with a power supply range of 12-24VDC ±10%, accommodating variations while maintaining stable performance. Current Consumption: Ensuring energy efficiency, the sensor boasts a maximum current consumption of 40mA. Operation Mode: Offers both Light ON and Dark ON modes, with configuration set via the control wire for enhanced versatility. Control Output: Incorporates a PNP open collector for seamless control signal transmission. Sensitivity Adjustment: Features a sensitivity adjuster, allowing for both coarse and fine adjustments to meet specific requirements. Environmental Suitability: Performs exceptionally well in varying environments, with resistance to ambient illumination including sunlight (max. 11,000lx) and incandescent lamp (max. 3,000lx). Operating Temperature: Ranging from -10°C to 50°C, ensuring stable performance in different operational conditions. Material: Crafted with a durable Acrylonitrile Butadiene Styrene (ABS) case and a robust Polycarbonate cover for longevity. Cable Specification: Features a Ø5mm, 4-wire, 2m cable with AWG24 specifications, ensuring reliable connectivity. Output Type: PNP; Type: Amplifier; Beam Source: Red

It’s worth noting that the provided price includes a 4mm thread diameter optic fibre cable. The Autonics BF3RX-P Optic Fibre Sensor represents a reliable and versatile sensing solution for a variety of applications.

Description

  • Light source: Red LED(660nm); Response time: Max. 1ms; Power supply: 12-24VDC ±10%(ripple P-P: max. 10%); Current consumption: Max. 40mA
  • Operation mode: Light ON/Dark ON(set by control wire); Control output: PNP open collector; Sensitivity adjustment: Sensitivity adjuster(coarse adjustment, fine adjustment); Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
  • Operating Temperature: -10℃ to 50℃, Relative Humidity: 35 to 85% RH; Storage Temperature: -25℃ to 70℃, Relative Humidity: 35 to 85% RH
  • Material: Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate; Cable specification: Ø5mm, 4-wire, 2m (AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm)
  • Output: PNP; Type: Amplifier; Beam Source: Red
Price quoted is with 4 mm thread dia optic fibre cable .

Additional information

Weight 1 kg
