Description

This is PID Controller – 3 output  and the Model no is UTC-3203 .  4 Digit , 7 Segment LED Display . Universal input TC/RTD . PID/ON-OFF  . Auto /Self tuning  . Heating /Cooling (Relay&SSR)

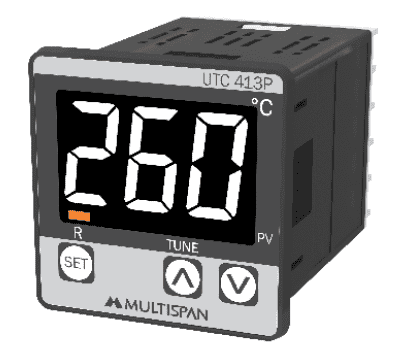

Model Name/Number UTC-413p
Pannel Cutout(mm) 45×45
Input Sensor J/K/PT-100 2W/3W (Configurable)
Range j (0°C to 600°C),K (0°C to 900°C)
PT-100 (-50.0°C to 200.0°C)
Output 3 Relay 1C/O, 5A,230V AC(Resistance load) or 3 SSR Drive O/P 12V DC, (3 Set Point)
Supply  100 to 270V AC , 50/60HZ
Accuracy ±1% of FSD
Control Action PID / ON-OFF (Configurable)
Dimension(HxWxD)  48x48x70



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
