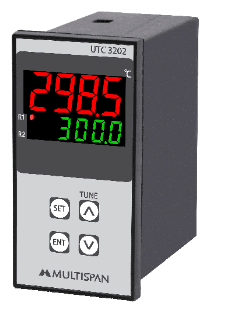

Multispan UTC-3202 Dual output Full Featured PID
₹2,261.00
- Description
- Additional information
Description
This is Dual output Full Featured PID and the Model no is UTC-3202G . 4 + 4 Digit , 7 Segment LED Display . Universal input TC/RTD . PID/ON-OFF . Auto /Self tuning . 3 Programmable output (Relay or SSR).
With soak timer facility.
| Model Name/Number | UTC-3202G |
| Pannel Cutout(mm) | 92×45 |
| Input Sensor | J/K/PT-100 2W/3W (Configurable) |
| Range | j (0°C to 600°C),K (0°C to 1200°C, 0.0 to 500.0°C) PT-100 2W/3W (-50.0°C to 400.0°C,-50.0°C to 400.0°C) |
| Output | 2 Output : (SSR parallel to 1st Relay) +1 Relay or 1 SSR Drive O/P (2 Relay 1C/O, 5A 230V AC (Resistance load) or SSR Drive O/P 12V DC, 20mA |
| Operting Mode | High/Cool / Alarm |
| Alarm | High/Inband/ Absolute Low / Absolute Outband/Outband/End Alam / Low Alarm Outband + Soak timer |
| Control Action | PID / ON-OFF (Configurable) |
| Accuracy | ±1% of FSD |
| Supply | 100 to 270V AC , 50/60HZ, Approx 4VA |
| Dimension(HxWxD) | 96x48x85 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
