Description

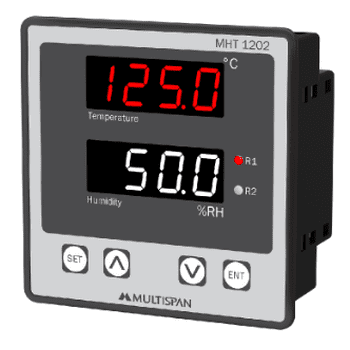

This is  (Humidity + Temp. Controller)   and the Model no isMHC-1202 .  Rh sensor ( uptil 85% Rh ) provided. 4 Digit single or Dual 7 Segment LED Display  . Humidity and temperature RTD input
Individual relay output for humidity and temperature



Model Name/Number MHC-1202 (Humidity + Temp. Controller)
Pannel Cutout(mm) 92×92
Input Sensor S-1: PT-100 2wire or 3wire(RTD)
S-2: Humdity Sensor
Range  PT-100 2wire or 3 wire (-50°C to 199.9°C)
Humidity Sensor (0.0 to 100.0%)
Output 1 Relay for Temperature and 2 Relay for Humidity .
RS-485 Modbus (Optional)
Supply  100 to 270V AC (SMPS) , 50/60HZ
Accuracy ±1% of FSD
Control Action PID / ON-OFF
Dimension(HxWxD) 96x96x52



Usually dispatched within 4 working days

Warranty : 1 year cover { not valid if found fire burnt or damaged }

Additional information

Weight 1 kg
