Multispan AV-14DA DV AV-24DA DV AV-34DA DV DC Ampere Meter
₹866.00
- Description
- Additional information
Description

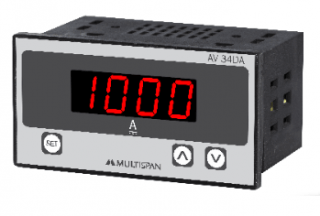

This is DC Ampere Meter and the model no is AV-14DA/DV, AV-24DA/DV, AV-34DA/DV. 4 Digit , 7 Segment LED Display . CT Selectable up to 2000/5 Amps . 30.0 Amps direct
| Model Name/Number | AV-14DA/14DV, AV-24DA/DV , AV-34DA/DV |
| Pannel cutout | 92×92/68×68/46×92/45×45 |
| Ampere (DC) | 0 to 9999 Ampere DV through 75mV DC external shunt |
| Voltage (DC) | 19.99V DC/49.99V DC/99.99V DC/199.9V DC/750V DC(factory set) |
| Accuracy | ±1 % of full range ± count |
| Power Supply | 230V AC ±10%,50Hz |
| Dimension (HxWxD) | 96x96x42/72x72x60/48x96x65/48x48x70 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|---|
| size | AV-14DA/14DV, AV-24DA/DV, AV-34DA/DV |
