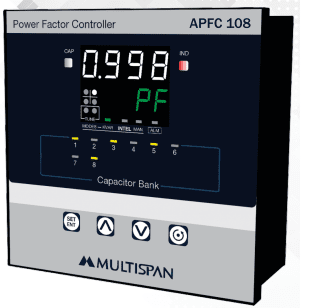

Multispan APFC-108 Automatic Power Factor Controller
₹6,581.00
- Description
- Additional information
Description
This is Automatic Power Factor Controller and the model no is APFC108. Auto calculation of capacitor value & correction in CT polarity . Optimum control of PF with built-in intelligent switching algorithm .Capacitor Health Monitoring by connecting extra CT for measuring capacitor values . Extra relay for panel fan connection as required . 4 digit,7 segment white LED Display . 8/12/14/16 stage
VAR Controlling, PF controlling
| Model Name/Number | APFC108 / APFC112 |
| Pannel Cutout(mm) | 1377×137 / 1377×137 |
| Current | 0.01 to 5Amp AC (Without CT) CT Ratio Selectable 5/5A AC 9999 /5A) for main CT & Capacitor CT |
| Controlling PF Range | +1.000 (Lag) to -1.000 (Lead) |
| Min. Operating Current | Selectable Ramge 1mA to 500mA(By Default 30mA) |
| Input Voltage | 300 to 520V (P-P) CAT-III |
| Sensing | Scan Time 1sec. to 999.9 sec . |
| Output | No-C 8 Relay for Capacitor bank+1 Alarm or 1 Fan Relay / No-C 12 Relay for /Capacitor bank +1 Alarm Relay 1 Fan Relay |
| User Programm Functions | SMain CT Ratio, Capacitor CT ratio , Minimum Operating Curent , Scan time , Programmable KVAR Hysteries, Capacitor bank sensing method |
| Control mode | KVAR/Intel /Manual |
| Accuracy | Class 0.5 |
| Supply | 300 to 520V (P-P) CATIII |
| Dimension(HxWxD) | 144x144x70/144x44x70 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
