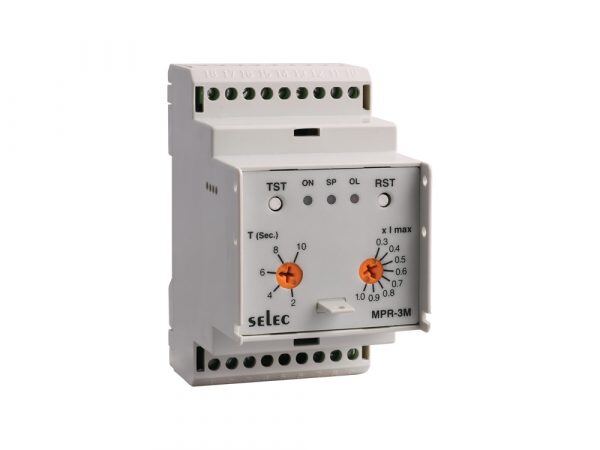

Selec MPR-3M-2-230V,motor protection relay
MPR-3M-2-230V, proudly crafted by Beeco. This advanced product showcases Beeco’s dedication to innovation and quality. Designed to deliver exceptional performance, the MPR-3M-2-230V offers reliability and efficiency like no other. Its cutting-edge features are engineered to meet the diverse needs of our customers.
With Beeco’s renowned expertise, the MPR-3M-2-230V promises to exceed expectations. Whether it’s for industrial applications or commercial use, this product stands as a testament to Beeco’s commitment to excellence. Count on the MPR-3M-2-230V to provide top-notch functionality, backed by Beeco’s reputation for producing high-quality solutions.
When you choose the MPR-3M-2-230V, you’re choosing a product that embodies Beeco’s values of precision, durability, and technological advancement. Elevate your experience with a product that truly reflects Beeco’s passion for engineering excellence.
- Description
- Additional information
Description
| Measuring Parameter | Overload Current, Phase Asymmetry, Phase Failure & Phase Sequence, Under Current |
| Electrical Connection | 3Ø-3W |
| Display | 3 LED Indication |
| Trip Setting | Phase Unbalance: 50% of Motor Current (Fixed), T(sec) Setting: 2 , 4, 6 , 8 ,10 Sec Trip Time Curve in Overload Trip Curve Graph, Under Current: 50% of Motor Current, X Imax: To Select Motor Current Rating |
| Time Ranges | Single Phase Trip: 5sec, Phase Unbalace: 5sec, Phase Sequence: 5sec, Overload Trip: As Per (IDMT Curve) , Under Current Trip: 5 Sec |
| CT Setting | 10A, 40A, 80A |
| Accuracy | Trip: ±5% of Set Value, Time: ±5% of Setting ±100ms |
| Output Contact | 2 C/O (DPDT ) |
| Output Rating | NC: 5A @ 240V AC , NO: 5A @ 240V AC |
| Supply Voltage | 230V AC ±15% |
| Size | 52.5mm |
| Mounting Type | DIN Rail Mount |
Additional information
| Weight | 1 kg |
|---|
