Description

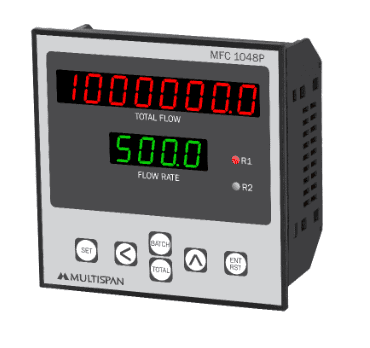

This is Flow Indicator and Model no is MFC -1048P. LED DISPLAY & FLOW INDICATOR WITH RELAY & MODBUS
| Model Name/Number | MFC-1048P |
| Pannel Cutout(mm) | 92×92 |
| Input | 4 to 20mA DC/ 0 to 10V DC/Pulse (factory Set) |
| Analog Input | 0-10V DC / 4-20mA DC/ 0-20mA DC (Configurable) |
| Range | 0 to 99999999 for Total Flow 0 to 9999 for Flow Rate |
| Output | 4-20mA DC/0-10V DC Retransmission (Factory Set) (Optional) 24V DC Transmitter Supply@30mA (by default) 1 Relay / 2relay 5A , 230V AC (resistive Load) (1 relay by default) RS-485 Modbus Communication (Optional) |
| Accuracy | ±1% of FSD |
| Supply | 100-270V AC, 50/60 HZ or 24V DC (Facotry Set) |
| Dimension(HxWxD) | 96X96X52 |
Usually dispatched within 4 working days
Warranty : 1 year cover { not valid if found fire burnt or damaged }
Additional information
| Weight | 1 kg |
|---|
