Selec FD9-1-010-C-CE

8,495.00

FD9-1-010-C-CE offers a single-phase AC input voltage range of 230VAC at 50/60Hz, with a power capacity of 1HP/0.7KW.

It supports various control modes including V/F, sensorless vector control (SVC), and speed sensor vector control (FVC). The frequency control range spans from 0 Hz to 5000 Hz, and acceleration/deceleration times range from 0.1 to 65000 seconds. It boasts overload capacities of 150% rated current for 1 minute and 180% rated current for 3 seconds. This drive features protection functions against over current, over voltage, under voltage, overheating, overload, and input phase loss. With an IP20 ingress protection rating, it operates effectively in temperatures ranging from -10°C to +40°C with humidity below 90%RH and no condensation, at altitudes below 1000m.

Category:

Description

AC Input Voltage Range Single Phase 230 VAC ; 50/60 Hz , 1HP/0.7KW
Control Mode V/F, Sensorless vector control (SVC), Speed Sensor vector control (FVC)
Frequency Control Range 0 Hz~5000 Hz
Acc./Dec. Time 0.1 ~ 65000 Sec
Overload Capacity 150% rated current for 1 minute, 180% rated current for 3 seconds
Protection functions Over current , over voltage , under voltage , overheating , overload , Input phase loss
Ingress Protection IP20
Working Temperature -10℃~+40℃, Humidity : <90%RH, no condensation, Altitude: Lower than 1000m

Additional information

Weight 4 kg

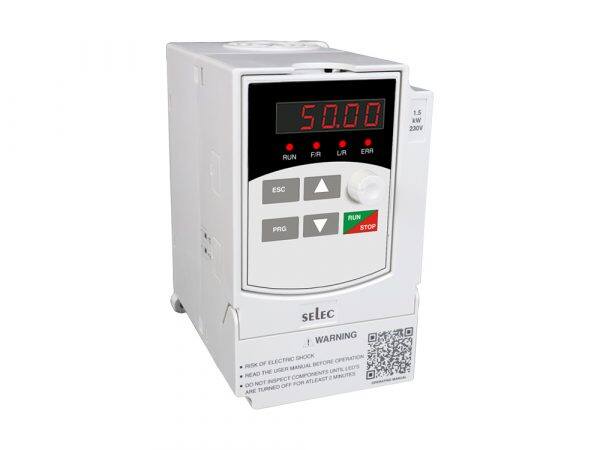

Related Products
