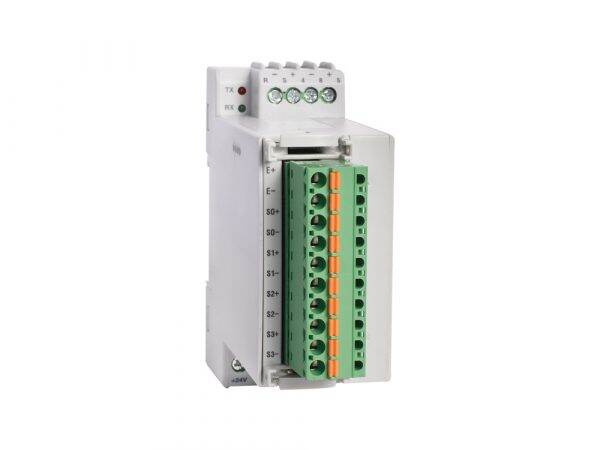

Selec EXP FLEX 2M
₹1,277.00
EXP FLEX 2M, a flexible expansion module designed to enhance industrial automation and control systems. With its compact dimensions of 35 x 90mm, this module offers a range of digital and analog input and output options to accommodate various applications.
The module features LED indicators to provide clear visual indication of power status and communication activity. The digital inputs, digital outputs, analog inputs, and analog outputs are tailored to the specific Flexys card selected for integration, offering customization to meet specific requirements.
For digital outputs, the module supports relay outputs with a rating of 5A @ 230VAC or 24VDC, offering versatility for various load types. Additionally, transistor outputs are available with a source type rating of 100mA @ 24VDC, allowing for precision control.
Communication is established through an RS485 proprietary protocol, enabling effective integration into existing systems. Operating on a supply voltage range of 18 to 30 VDC, the module can be powered from a variety of sources.
- Description
- Additional information
Description
| Display Type | LED Indication For Power ON & Communication Status |
| Digital Inputs | As Per Flexys Card Selected |
| Digital Outputs | As Per Flexys Card Selected |
| Output Ratings | 5A @230VAC / 24VDC (Relay) Source Type 100mA @24VDC (Transistor) |
| Analog Inputs | As Per Flexys Card Selected |
| Analog Outputs | As Per Flexys Card Selected |
| Communication Interface | RS485 Proprietary Protocol |
| Supply Voltage | 18 to 30 VDC |
| Size | 35 x 90mm |
| Mounting Type | DIN Rail |
Additional information
| Weight | 2 kg |
|---|
