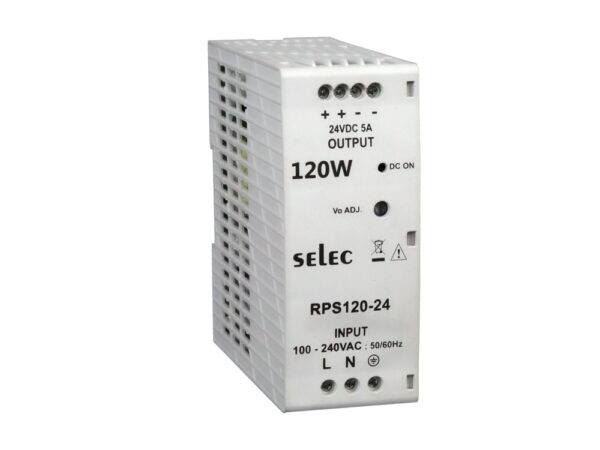

Selec DIN RAIL MOUNT 120W/5amp ,output 24 v POWER SUPPLY Product: RPS120
₹1,523.00
RPS120 DIN Rail Mount Power Supply, a robust solution delivering 120W/5A at an output of 24V, perfectly suited for various applications. With an input voltage range of 90-264VAC (127-370VDC) and a frequency of 50/60Hz, it adapts to diverse power setups. Inrush current of <48 Amps during cold start ensures a smooth power-up process.
Voltage and load regulations are kept within <1% tolerance, ensuring precise power delivery. Rapid turn-on time, dependable hold-up time, and overload protection ensure efficient performance. With an operating temperature of -25°C to +70°C and DIN rail mountability, it’s versatile for different environments. Its compact size of 43 x 109.8 x 102.7 mm and weight of 350g make installation hassle-free.
- Description
- Additional information
Description
| Input Voltage | 90 – 264 VAC (127 – 370 VDC) |
| Input Frequency | 50/60 Hz |
| Inrush Current | < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
| Output Voltage | 24 v |
| Output Power | 120 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | < 1% of Vout |
| Load Regulation | ± 1 % |
| Turn On Time | < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load |
| Hold Up Time | ≥60ms at 230V AC & ≥15ms at 115V AC, Full load |
| Rise Time | < 100 ms |
| Overload Protection | > 110% of rated output current; Hiccup type; Autorecovery |
| Overvoltage Protection | Latched type; Input AC power to be recycled to recover the power supply |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
| Operating Temperature | – 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation |
| Storage Temperature | – 40°C to + 85°C |
| Cooling | Natural convection cooled |
| Humidity | 5 to 95 % RH, Non condensing |
| Altitude | 2000 m |
| Dimension | 43 x 109.8 x 102.7 mm (W x H x D) |
| Weight | 350 gms |
| Mounting | 35 mm Din rail |
