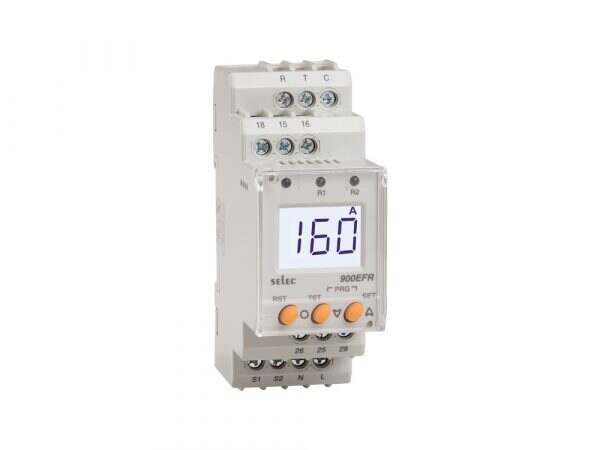

Selec 900EFR, earth fault relay
900EFR Digital Earth Fault Relay is a vital component for ensuring electrical safety. Designed to monitor earth fault currents, it supports various electrical configurations such as 3-phase 4-wire, 1-phase 2-wire, and 3-phase 3-wire setups. Equipped with a 3-digit LCD display featuring backlight, it offers clear real-time insights.
This relay allows flexible trip settings from 10% to 80% of the selectable MCCB Frame Rating. Its time ranges encompass a quick 100ms response time, trip delays from 0 to 99.9 seconds, and recovery time delays within the same range (in Auto Reset Mode). A power-on delay of 0.5 to 99.9 seconds is also available.
Precision is key, with current accuracy within ±5% of the set value plus 2 digits, and time accuracy within ±5% of the settings plus 100ms. The relay features two changeover output contacts (SPDT) with contact ratings of NC: 3A@250V AC and NO: 5A@250V AC.
Operational flexibility is assured with a supply voltage range of 85 to 270V AC/DC, while its compact 35mm size and DIN Rail Mounting facilitate easy installation. Holding CE certification, it adheres to high safety standards. The 900EFR Relay offers a comprehensive solution for effective earth fault current monitoring.
- Description
- Additional information
Description
Measuring Parameter | Earth Fault Current Monitoring |
Electrical Connection | 3Ø-4W, 1Ø-2W, 3Ø-3W |
Display | 3 Digits Liquid Crystal Display with Backlight |
Trip Setting | 10% to 80% of Selectable MCCB Frame Rating |
Time Ranges | Response Time: 100ms, Trip Time Delay: 0-99.9sec, Recovery Time Delay: 0-99.9sec (In Auto Reset Mode), Power ON Delay: 0.5-99.9sec |
Accuracy | Current : ±5% of the settings ±2digit, Time : ±5% of the settings ± 100ms |
Output Contact | 2 X 1 C/O (SPDT) |
Output Rating | NC: 3A@250V AC, NO: 5A@250V AC |
Supply Voltage | 85 to 270V AC / DC |
Size | 35mm |
Mounting Type | DIN Rail Mount |
Certification | CE |
Additional information
Weight | 1 kg |
---|
