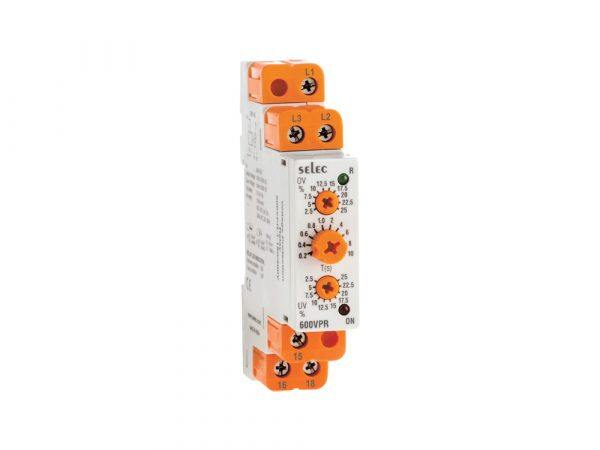

Selec 600VPR-1-170/290-CU, Voltage Protection Relay
600VPR-1-170/290-CU Analog Voltage Protection Relay, a comprehensive solution for protecting and maintaining the stability of your electrical systems. This relay falls under the category of Analog Voltage Protection Relays, offering robust features for voltage monitoring and protection. With a focus on precision and reliability, the 600VPR-1-170/290-CU is equipped to ensure the optimal functioning of your electrical setup.
Measuring Parameters:
Under Voltage
Over Voltage
Phase Sequence
Phase Failure
Designed for a 3-phase, 3-wire electrical connection setup, the relay offers accurate monitoring of voltage parameters. The time ranges include a trip time delay from 0.2 to 10 seconds, and a power on delay of 400 milliseconds, ensuring a safe transition to operational conditions.
- Description
- Additional information
Description
| Measuring Parameter | Under Voltage, Over Voltage, Phase Sequence, Phase Failure |
| Electrical Connection | 3Ø – 3W |
| Time Ranges | Trip Time Delay: 0.2 to 10 sec, Power On Delay: 400msec |
| Accuracy | Trip Voltage: ±1% of F.S Trip Time: ±1% of F.S |
| Output Contact | 1 C/O ( SPDT ) |
| Output Rating | NC:3A @ 250V AC, NO:5A @ 250V AC |
| Operating Voltage | 170 to 290 V AC (L-L) |
| Size | 17.5mm |
| Mounting Type | DIN Rail Mount |
| Certification | CE, UL Listed |
Additional information
| Weight | 1 kg |
|---|
